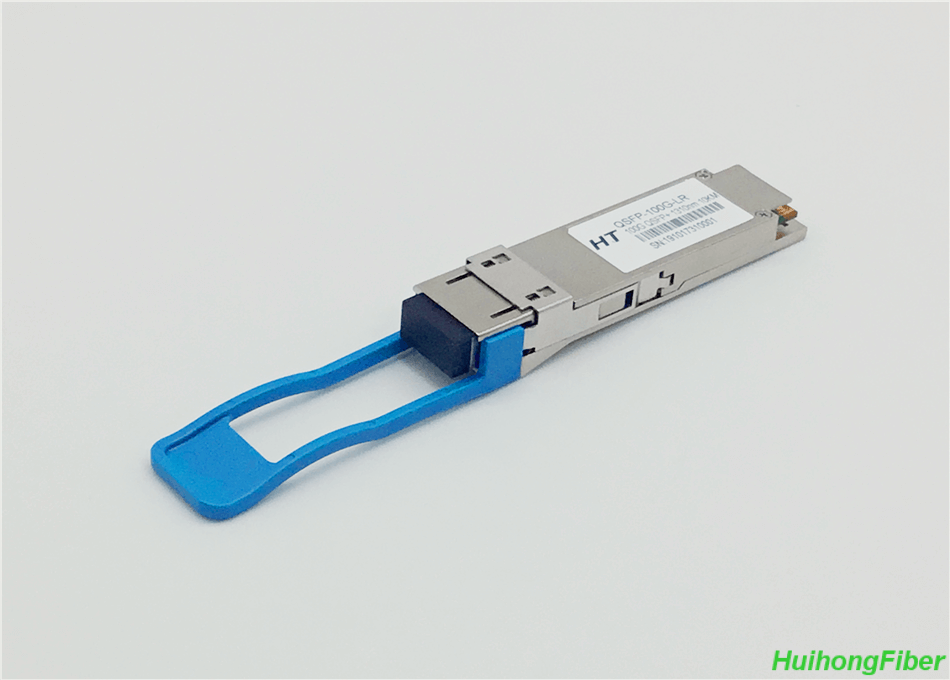

QSFP-100G-LR4-D

QSFP-100G-LR4-D Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km Transceiver Module. The 100gbase -QSFP-100G-LR4-D pluggable (QSFP) portfolio provides customers with a wide range of high-density and low-power 100gb Ethernet connectivity options for data centers, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The -QSFP-100G-LR4-D module is our next-generation 100g transceiver module solution based on the QSFP shape factor.

QSFP-100G-LR4-D Characteristics:
4-channel full duplex transceiver module
Up to 26Gbps per channel transfer data
4 x 26gb/s dfb-based CWDM uncooled transmitter
4 channel pin Rosa
Internal CDR circuit on receiver and transmitter channels
Low power 3.5W
Hot-swappable QSFP shape factor
G.652 SMF has a maximum distance of 2 km (with KR4 FEC)
Dual LC socket
Built-in digital diagnostics
Operating box temperature from 0C to .70C
3.3V supply voltage RoHS 6 compliant (lead-free)

Compatible QSFP-100G-LR4-DVendor Name Huihongfiber
Form Type QSFP28Data Rate Dual Rate 103.1Gbps and 112Gbps
Wavelength 1310nmMax Cable Distance 10km
Connector LC duplexTransmitter Type DML 1310nm
Cable Type SMFDDM/DOM Supported
TX Power -4.3~4.5dBmReceiver Sensitivity <-10.6dBm
Protocols 100G Ethernet, MSA CompliantCommercial Temperature Range 0 to 70°C (32 to 158°F)
