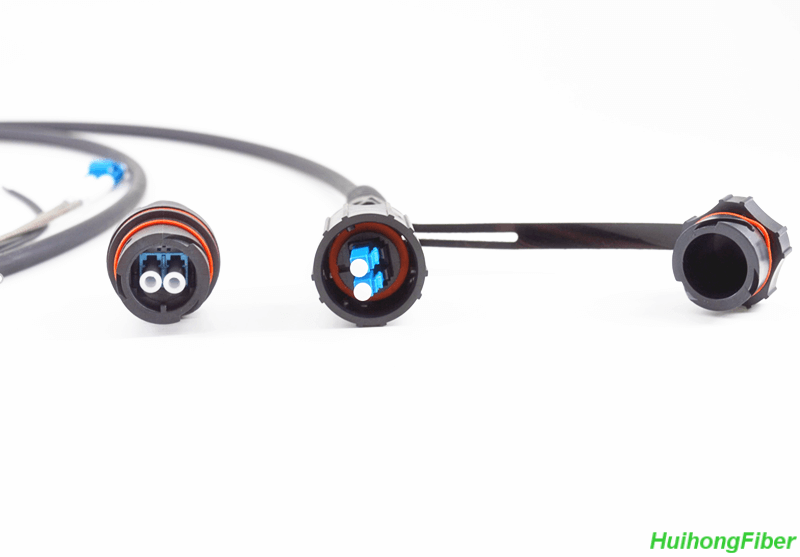

ODVA LC Duplex Fiber Patch Cable

Sealed Circular IP 67 ODVA Duplex LC fiber patch cable assemblies are available in both single mode and multimode version, this ODVA LC is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use. our IP 67 ODVA LC duplex cables are designed as per IEC 61076-3-106 interfaces standard, integrated with our quality LC fiber connectors with loss optical loss; and we designed a rugged and armored PE jacketed optical cable body. we have these ODVA LC in 9/125 LC/UPC, 50/125 OM2/OM3/OM4/OM5 LC/UPC and 62.5/125 OM1 LC/UPC. cable assemblies can be custom made in ODVA Duplex LC to Breakout dual LC, or ODVA LC to other popular connectors.

Connector A ODVA LC Connector B ODVA LC or DX LC
Fibre Mode OS2 9/125μm SM Wavelength 1310/1550nm
Polish Type UPC/APC Mini Bend Radius 10mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥60dB
Jacket OD 7.0mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA LC Connector B ODVA LC or DX LC
Fibre Mode OM1 62.5/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA LC Connector B ODVA LC or DX LC
Fibre Mode OM2 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA LC Connector B ODVA LC or DX LC
Fibre Mode OM3 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA LC Connector B ODVA LC or DX LC
Fibre Mode OM4 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 66 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C

ODVA LC Duplex Fiber Patch Cable Features and Applications

  • Standard Duplex LC connector, well connected with standard LC interface
  • Available in Single mode and Multimode
  • IP67 protection, salt-mist proof, humidity proof, dust proof
  • Low insertion loss, steady optical transmitting
  • Widely used in FTTA & FTTH
  • Used for 3G 4G base station
  • BBU, RRU, RRH, LTE
