CWDM-SFP25G-1310-10

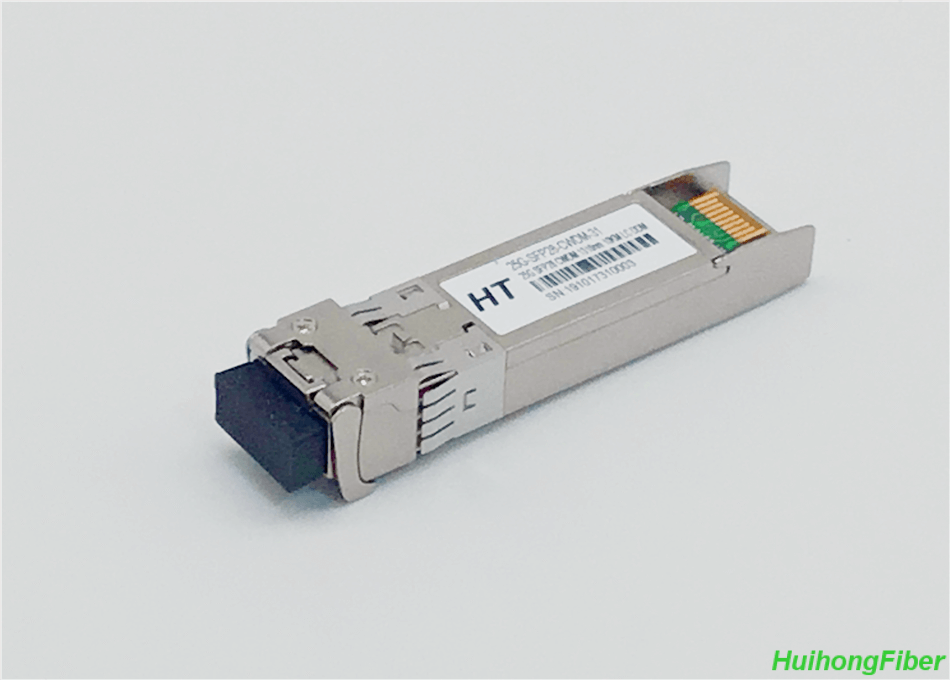

Cisco CWDM-SFP25G-1310-10 Compatible 25G 1310nm CWDM SFP28 10km DOM Transceiver Module.This 25G CWDM SFP28 transceiver is compatible with the Cisco SFP-25G-CWDM module. It is designed for Cisco 25 Gigabit Ethernet connectivity and CPRI10 applications. The 25G CWDM transceiver has the same programming and testing performance as the original Cisco 25GBase-CWDMSFP28 transceiver, but at a lower price.

This 25G CWDMSFP28 module features a highly reliable CWDMDFB transmitter and pin-type photodetector to a dual LC fiber optic connector that supports up to 10 km of links on single-mode fiber.

Characteristics
Features similar to the Cisco 25GBase-CWDM SFP28 transceiver
Support for 25GB/s data rate
Uncooled CWDM DFB transmitter, pin photodetector
Up to 10 km on single-mode fiber
Low power consumption 1.2W
Built-in digital diagnostics
Single 3.3V power supply RoHS compliant and lead-free

Cisco Compatible CWDM-SFP25G-1310-10 Vendor Name Huihongfiber
Form Type SFP28 Max Data Rate 25Gbps
Wavelength 1310nm Max Cable Distance 10km
Interface LC duplex Optical Components DFB CWDM
Cable Type SMF DOM Support Yes
TX Power -7~3dBm Receiver Sensitivity <-11.3dBm
Protocols MSA Compliant Commercial Temperature Range 0 to 70°C (32 to 158°F)
